  • Added Versatility

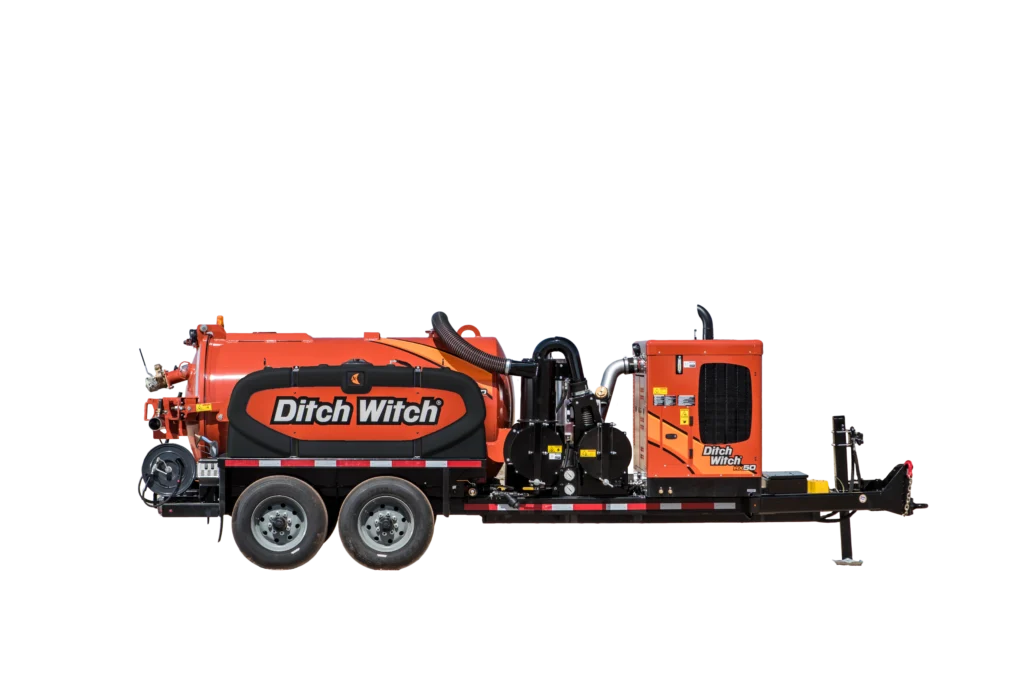

    HX50
    Added Versatility

    The HX50 is designed for a wide range of applications, including potholing, storm-drain cleanout, HDD site cleanup, water-leak repair, valve-box and utility-vault cleanout, commercial and residential debris cleanup, and landscaping and posthole digging.

    The HX50 is equipped with an 800-gal (3028-L) debris tank to meet the requirements of any size soft excavation or cleanup job.

    • 800-gallon configurations include:

      • A standard configuration equipped with a 200-gal freshwater tank and 20K GVWR trailer.

      • A heavy configuration equipped with a 400-gal freshwater tank and a 24K GVWR trailer.

    All trailer configurations are NATM compliant and are offered with an optional toolbox for extra storage.

    An optional jib boom is available on all HX50 configurations and has exclusive dual articulation, providing the widest range of motion in the industry, as well as a hose restraint, which helps control the unit’s hose while working.

    A power boom, available on the 24K GVWR trailer package, features an advanced design that reduces manual labor for the operator. The boom is hydraulically powered with a 330-degree rotation and includes a self-locking gear, acting as a boom brake, to restrain motion of the boom and maintain its desired position.

    The machine can easily be configured to accommodate operator controls on either the left or the right side to meet each contactor’s individual needs.

  • Dimensions (800 Gal Spoils / 400 Gal Water)



    Dimensions (800 Gal Spoils / 400 Gal Water)

    US
    Metric





    Length
    269.4 in
    6.84 m



    Width
    96 in
    2.44 m



    Height
    88.7 in
    2.25 m



    Weight, empty
    10,428 lb
    4730 kg



    Trailer GVWR
    24,000 lb
    10886 kg

  • Hydraulic System



    Hydraulic System

    US
    Metric





    Gear pump





    Flow Rate
    5.5 gpm
    21 L/min



    Reservoir size
    10 gal
    37.9 L



    Pressure
    2,500 psi
    172 bar

  • Low-Profile, Customer-Driven Design
    HX50
    Low-Profile, Customer-Driven Design

    Featuring a low-profile design, the machine’s full unit height is reduced. This eases maneuverability and allows the unit to fit in height-restrictive areas, without compromising ground clearance so operators can more easily avoid ground-level obstacles.

    An exclusive, lockable hose-storage design allows operators to store the hose flat and straight inside the unit frame – a direct customer-driven enhancement. The vac door also features lockable, convenient storage for unit tools, including the vac tube and digging lance.

    Patent-pending, advanced door linkage automates lockout when fully opened, without requiring any additional effort from the operator.

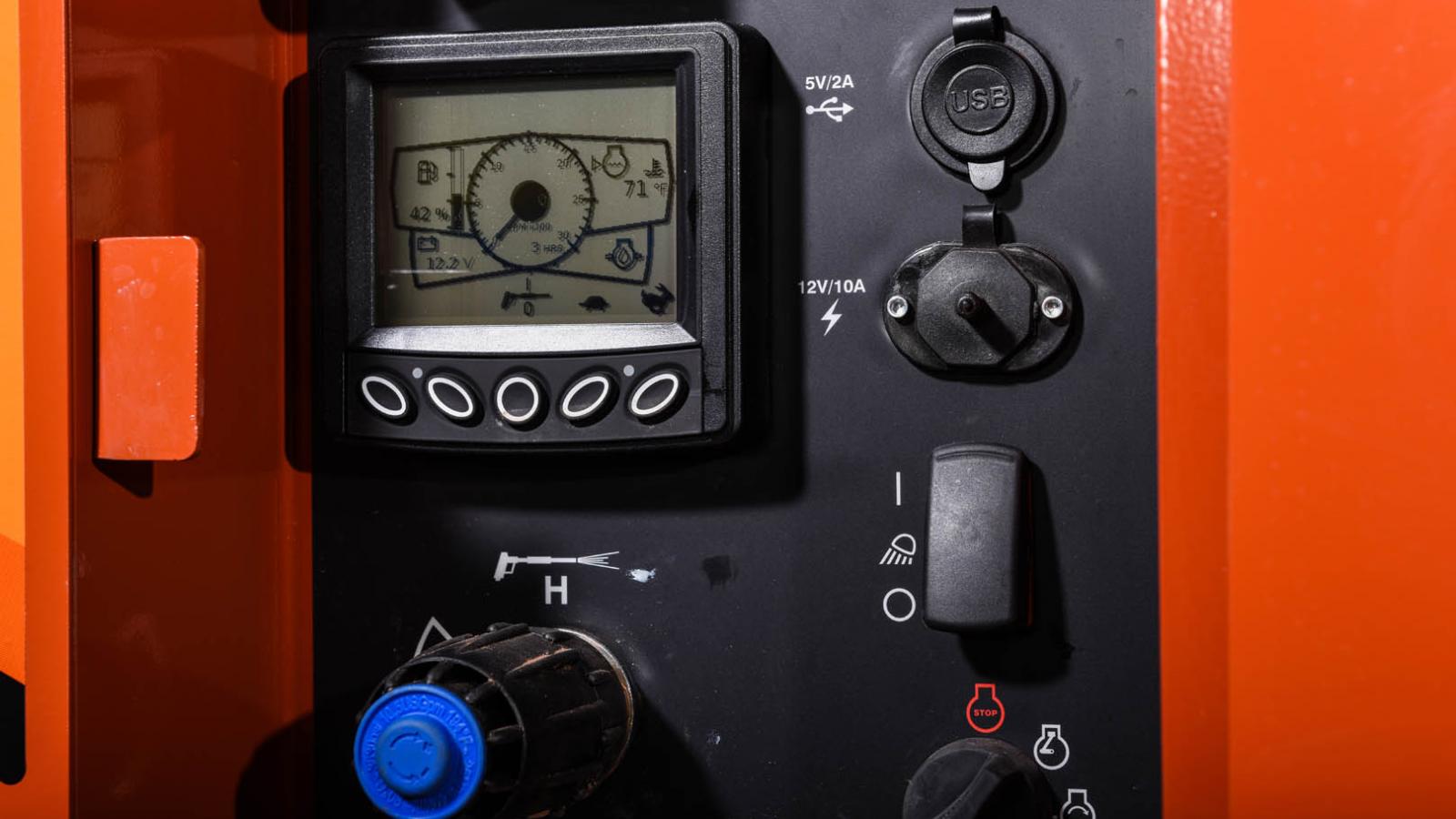

    The HX50 now has hydraulic controls located at the rear of the unit, leaving less opportunity for damage to the unit by enhancing operator visibility.

    An optional dual work light features two LED floodlights in the back of the vac unit for use in dark or night conditions.

  • Water System



    Water System

    US
    Metric





    Water tank capacity
    200/400 gal
    757/1514 L



    Water pump flow
    5.3 gpm
    20.1 L/min



    Water pump pressure, max
    3000 psig
    207 bar



    Clutch type
    Electric pump clutch w/ auto declutch feature




    Anti-freeze system
    50/50 water/antifreeze mix




    Hose reel length
    50 ft
    15.2m

  • Dimensions (800 Gal Spoils / 200 Gal Water)



    Dimensions (800 Gal Spoils / 200 Gal Water)

    US
    Metric





    Length
    269.4 in
    6.84 m



    Width
    96 in
    2.44 m



    Height
    88.2 in
    2.24 m



    Weight, empty
    9,600 lb
    4354 kg



    Trailer GVWR
    20,000 lb
    9072 kg

  • Noise Level



    Noise Level








    Sound power
    112 dBA




    Sound pressure
    90 dBA


  • Battery



    Battery








    SAE reserve capacity rating
    195 min




    SAE cold crank rating @ 0°F (-18°C)
    950 amps




    Electrical system
    12V


  • Vacuum System



    Vacuum System

    US
    Metric





    Air flow
    1005 cfm
    28.5 m³/min



    Vacuum, Max
    16 in Hg
    406 mm Hg



    Vacuum tank capacity
    800 gal
    3028 L



    Tank outlet valve size
    6 in
    152 mm



    Filter type
    Washable polyester




    Filter area
    73 ft²
    6.8m²



    Suction hose
    4in
    102 mm

  • Simplified Maintenance
    HX50
    Simplified Maintenance

    The HX models feature improved serviceability as all maintenance points are more accessible with a liftoff power pack door design, improving access to all service points.

    Standard on the HX50 is a cyclonic filtration system that minimizes filter cleaning frequency, provides superior filtration and increases productivity.

    An optional spare tire with a carrier allows easy access to a spare when needed, reducing downtime.

  • Unbeatable Power, Enhanced Productivity
    HX50
    Unbeatable Power, Enhanced Productivity

    The HX50 is powered by a 49-hp (36.5-kW) Kubota diesel engine to support all machine functions from potholing to cleanup of a variety of soils, HDD fluids and jobsite debris.

    The HX50 provides 20 percent more fuel capacity than its predecessor for improved productivity and fewer refueling stops during the workday.

    New with the HX vacuum excavation line, a patent-pending make/break seal design optimizes air flow for increased efficiency, and simplified plumbing.

    An auto-clutching feature disengages the water pump when water is not in use, allowing full system power to the blower for improved productivity.

    A now standard reverse-flow feature allows quick and easy spoil offloads for improved productivity.

    A standard, cyclonic three-stage filtration system cleans the air before it reaches critical components. It is comprised of the debris tank, cyclonic filter, and 0.5-micron washable vacuum filter - offering the industry’s best filtration for maximum protection of key components.

    Featuring outstanding suction, the HX50 is equipped with an efficient 1,005-cfm (28.5-m3/min) blower.

  • Power



    Power

    US
    Metric






    Kubota® D1803-CR-TE4B




    Fuel
    Diesel




    Cooling medium
    Liquid




    Aspiration
    Direct




    Number of cylinders
    3




    Manufacturer's gross power rating
    49.6 hp
    37 kW



    Emissions compliance
    EPA Tier 4




    Rated speed
    2700 rpm




    Fuel tank capacity
    30 gal
    113.6 L
