  • Power

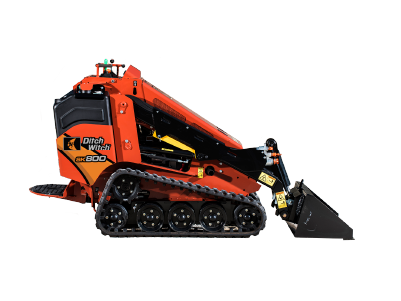

    SK800
    Power

    An efficient, low-maintenance 24.8-hp (18.5-kW) Kubota diesel engine provides exceptional power to all machine functions.

    With an 860-lb (390-kg) rated operating capacity and an 83-inch (210.82-cm) hinge-pin height, the SK800 enables productive loading and the ability to handle heavy-duty tasks.

    Equipped with 4.8-mph (7.7-km/h) ground drive speed in both forward and reverse for enhanced jobsite efficiency.

    Accepts a variety of attachments for a wide range of utility, landscaping, plumbing and other underground construction tasks, improving customer ROI.

  • POWER



    POWER








    Engine
    Kubota® D1105




    Fuel
    Diesel




    Gross power rating (SAE J1995)
    24.8 hp
    18.5 kW



    Emissions compliance
    EPA Tier 4




    Number of cylinders
    3




    Displacement
    68.5 in3
    1.12 L



    Bore
    3.07 in
    78 mm



    Stroke
    3.09 in
    78.4 mm



    Rated speed
    3,000 rpm


  • Operator’s Station
    SK800
    Operator’s Station

    Designed specifically with the hardworking operator in mind, the SK800 is equipped with a best-in-class, 332-in2 (843-cm2) operator platform for outstanding comfort and productivity during long hours on the job.

    A spring-supported platform is integrated directly into the machine for enhanced durability and comfortability on the job.

    Ergonomic operator's station comes standard with dual-lever ground drive controls and an optional joystick, allowing the operator to control each track independently for improved maintenance and mobility on difficult jobsite conditions.

    An LCD display with programming improvements provides direct visibility into engine diagnostics.

  • DIMENSIONS (STD)



    DIMENSIONS (STD)

    U.S.
    METRIC





    Operating height, max std. bucket
    105 in
    2.67 m



    Overall height of machine
    57 in
    1.45 m



    Overall length of machine, std. bucket
    105 in
    2.67 m



    Overall length of loader, no attachment
    86 in
    2.19 m



    Machine weight, no attachment, fluids full
    2,920 lb
    1324 kg



    Hinge pin height, max
    83 in
    2.10 m



    Wheelbase/track length
    43 in
    1.09 m



    Machine width





    Max, w/9-in (230-mm) tracks
    42 in
    107 cm



    Min, w/7-in (180-mm) tracks
    36 in
    91 cm



    Ground clearance, min





    Center
    8.9 in
    226 mm



    Side
    3.7 in
    94 mm



    Rated operating capacity





    35% of tipping capacity
    860 lb
    390 kg



    Tipping capacity
    2,465 lb
    1118 kg



    Angle of departure
    27°


  • HYDRAULIC SYSTEM



    HYDRAULIC SYSTEM








    Auxiliary circuit





    Double gear pump





    Flow rate
    12.0 gpm
    45.4 l/min



    Pressure
    3,000 psi
    207 bar

  • Superior Support
    SK800
    Superior Support

    The SK800 leverages the common design and standard operation of other Ditch Witch skid steer models to streamline operator training and simplify machine maintenance.

    As with all Ditch Witch equipment, the SK800 is backed by a worldwide network of dealerships you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service and expert advice, your Ditch Witch dealership is your trusted partner on any job.

  • Rugged, Low-Maintenance Design
    SK800
    Rugged, Low-Maintenance Design

    The rugged, construction-grade design is built for heavy-duty operation, improving machine durability, longevity and overall machine ROI.

    An innovative high-drive track system features bolt-on sprockets and wide track rollers for enhanced stability, longer track life and ease of maintenance.

    Low-maintenance, track-tensioning system is equipped with a grease cylinder for easy adjustment and track removal, improving machine longevity and minimizing downtime.

  • FLUID CAPACITIES



    FLUID CAPACITIES








    Fuel tank capacity
    10.5 gal
    40 L



    Engine oil, w/filter
    5 qt
    4.7 L



    Hydraulic reservoir capacity
    9.2 gal
    35 L

  • OPERATION



    OPERATION
    Ground drive speed







    Forward/reverse
    4.3 mph
    6.9 km/h



    Ground pressure





    7-in (180-mm) tracks
    5.2 psi
    0.36 bar



    9-in (230-mm) tracks
    4.3 psi
    0.29 bar

  • NOISE LEVEL



    NOISE LEVEL








    Operator ear sound pressure
    89 dBA




    Sound power
    100 dBA


  • Productivity
    SK800
    Productivity

    Industry-leading power to the attachment provides unbeatable productivity, especially when operating hydraulic attachments, and increases jobsite cycle times.

    Advanced attachment-latching system for simple, secure connection of the attachments.

    A two-way, easy-to-use auxiliary control foot pedal enables operators to maintain hydraulic flow to the attachment while freeing their hands to control depth and ground speed.

    A single-point, lockable fuel and hydraulic fluid tank improve security and provide rental companies peace of mind.

  • BATTERY



    BATTERY








    SAE reserve capacity rating
    110 min




    SAE cold crank @ 0°F (-18°C)
    800 amps




    Electrical system
    12V
