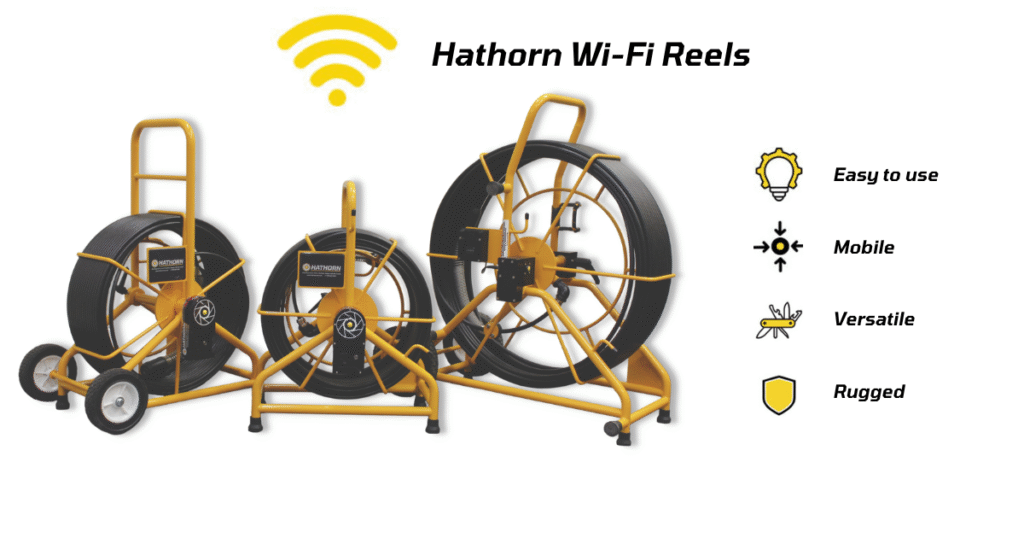

Wi-Fi Camera Reels

  • Hathorn
  • Inspection Cameras

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Stream video inspections directly to three Apple or Android mobile devices at the same time using our free Hathorn® app! Allows the user to take screenshots, record videos and make voice commentary. Save videos to your phone, insert a phone compatible USB key, email to your clients or attach to your route management software seamlessly.

  • On-screen footage counter with reset
  • Wi-Fi stream/record, up to three devices at once
  • 512hz sonde control
  • Pause during recording not available
  • External 18V battery compatibility
  • + Expand All
  • - Close All
  • Mid Wi-Fi Inspection Reel

    Features

    • Mid reels are available in three camera head sizes, 1.23”, 1.43” and 1.68” self-leveling or straight view

    • 200FT Industry-leading HDPE premium push rod

    • Municipal Grade Wi-Fi camera reels are built North American Tough

    • On-screen footage counter with reset

    • Wi-Fi stream/record, up to three devices at once

    • External 18V battery compatibility

    • Pause during recording not available

    • 512hz sonde control

    Easy to Use

    • Footage counter and reset

    • Push around 2" elbows

    • Push up to 200' in a 12" pipe

    • Includes 512Hz sonde

    Portable

    • Wi-Fi stream/record, up to three devices at once

    • Ultra-sturdy 6" wheels to make transportation easy

    • Powered by 18v Milwaukee™ or compatible batteries

    Versatile

    • Compatible with all Hathorn® control modules

    • Self-levelling camera heads available

    • Three camera sizes available

    Rugged

    • Genuinely North American made

    • Butt-welded steel frame construction

    • Industry-leading HDPE premium cables

  • Large/XL Inspection Reel

    Features

    • Large reels are available in three camera head sizes, 1.23", 1.43” and 1.68”, self-leveling or straight view

    • 200-500FT Industry leading HDPE premium push rod

    • Municipal Grade Wi-Fi camera reels are built North American Tough

    • On-screen footage counter with reset

    • Wi-Fi stream/record, up to three devices at once

    • External 18V battery compatibility

    • Pause during recording not available

    • 512hz sonde control

    Easy to Use

    • On-screen footage counter and reset

    • Includes 512Hz sonde

    Portable

    • Wi-Fi stream/record, up to three devices at once

    • Ultra-sturdy 6" wheels to make transportation easy

    • Powered by 18v Milwaukee™ or compatible batteries

    Versatile

    • Compatible with all Hathorn® control modules

    • Self-levelling camera heads available

    • Three camera sizes available

    Rugged

    • Genuinely North American made

    • Butt-welded steel frame construction

    • Industry-leading HDPE premium cables

  • Product Numbers & Specifications

    Mini Reels

    Catalog Number

    Camera Head

    Self Leveling

    Rod Length

    Rod Size

    Min 90º Elbow

    Max. Pipe Well Lit

    LBS.

    Dimensions

    WMN-2123-SL

    1.23"

    Yes

    200ft.

    3/8"

    2"

    6"

    25-33lbs.

    24"x18"x10"

    WMN-2100

    1"

    No

    200ft.

    3/8"

    1.5"

    4"

    25-33lbs.

    24"x18"x10"

    Mid Reels

    Catalog Number

    Camera Head

    Self Leveling

    Rod Length

    Rod Size

    Min 90º Elbow

    Max. Pipe Well Lit

    LBS.

    Dimensions

    WMR-2168-SL

    1.68"

    Yes

    200ft.

    1/2"

    3"

    12"

    42lbs.

    29"x18"x15"

    WMR-2143-SL

    1.43"

    Yes

    200ft.

    0.400"

    3"

    10"

    42lbs.

    29"x18"x15"

    WMR-2123-SL

    Yes

    Yes

    200ft.

    0.400"

    2"

    6"

    42lbs.

    29"x18"x15"

    Large Reels

    Catalog Number

    Camera Head

    Self Leveling

    Rod Length

    Rod Size

    Min 90º Elbow

    Max. Pipe Well Lit

    LBS.

    Dimensions

    WXLR-4100

    1."

    No

    400ft.

    3/8"

    1.5"

    4"

    55lbs.

    33"x19"x16"

    WXLR-4123-SL

    1.23"

    Yes

    400ft.

    0.400"

    2"

    6"

    60lbs.

    33"x19"x16"

    WXLR-4143-SL

    1.43"

    Yes

    400ft.

    1/2"

    3"

    10"

    65lbs.

    33"x19"x16"

    WXLR-4168-SL

    1.68"

    Yes

    400ft.

    1/2"

    3"

    12"

    65lbs.

    33"x19"x16"

  • Mini Wi-Fi Inspection Reel

    Features

    • Mini reels are available in two camera head sizes, 1", and 1.23”, self-leveling or straight view

    • 200FT Industry-leading HDPE premium push rod

    • Municipal Grade Wi-Fi camera reels are built North American Tough

    • On-screen footage counter with reset

    • Wi-Fi stream/record, up to three devices at once

    • External 18V battery compatibility

    • Pause during recording not available

    • 512hz sonde control

    Easy to Use

    • Footage counter and reset

    • Push around 1.5" elbows

    • Push up to 200ft / 60m in a 6" pipe

    • Includes 512Hz sonde

    • Streams inspections directly to Apple or Android mobile devices using the free Hathorn® app

    Portable

    • Easy to carry at only 33 lbs

    • Powered by 18v Milwaukee™ or compatible batteries

    Versatile

    • Self-levelling camera heads available

    • Wi-Fi stream/record, up to three devices at once

    • External 18V battery compatibility

    • Pause during record not available

    Rugged

    • Genuinely North American made

    • Butt-welded steel frame construction

    • Industry-leading HDPE premium cables

  • Battery Life: ~6-8 hrs. using 3.0Ah (sonde off)
  • Water Resistance - Reel Hub: IP63
  • Size & Type: Dependent upon Apple/Android device used
  • Footage Counter: Feet or meters - resettable
  • Video Recording: MPEG4
  • Push Rod: HPDE - 100 to 400ft. / 1/4” to 5/8”
  • File Storage: Mobile device, cloud or USB
  • Screenshot: JPEG
  • AC/DC Adapter: 12V 4.1A (included)
  • Water Resistance - Camera & Rod: IP68 to 60psi
  • Operating Temperature: 14˚F to 122˚F (-10˚C to 50˚C)
  • Wi-Fi Frequency: IEEE802.11b/g/n
  • Water Resistance - Battery Cradle: IP65
  • Storage Temperature: -4˚F to 140˚F (-20˚C to 60˚C)
  • Battery: Only Milwaukee® M18 18V or equivalent (not included)
  • Sonde Frequency: 512Hz
  • Start Up Time: ~15 seconds
