Key Features & Specs

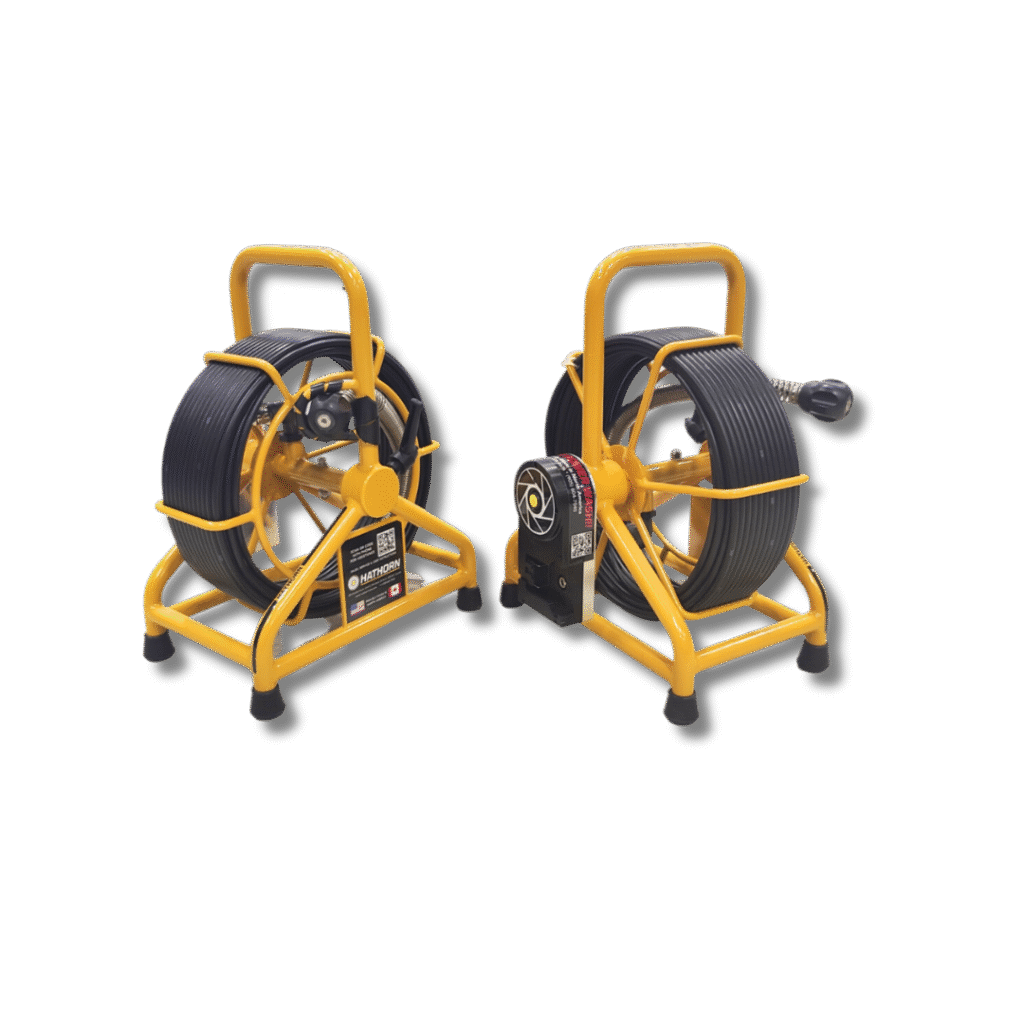

Micron Reels are trusted by plumbers, general contractors, and home inspectors to deliver recordable video inspection of small pipes 1 ½” - 3”. These municipal grade reels offer butt-welded steel frame construction and 100ft of premium ¼” push rod. Both styles of reel come equipped with 1” straight-view camera heads fitted with super bright, cool running LEDs for optimal picture quality. Standard Reel Inspection cameras are designed to work with all Hathorn® control modules past present and future!

  • Compatibility – Wi-Fi stream/record (App for Apple or Android)
  • Camera Head - 1"straight view camera head with auto-iris technology, suitable for 1 ½”- 3” lines
  • 100FT Push Rod – with premium ¼” rod with HDPE jacket
  • Operating Temperature – -30C to 60C (-22F to 140F)
  • Sonde - 512 Hz High-power sonde
  • Power – 18V Milwaukee™ or equivalent battery (sold separately) or included AC/DC adapter
  • Non-Dimmable Lighting – 8 super bright cool running LEDs for long camera life ~8,000 LUX at 6”
  • Ingress Protection of Reel & Drains Camera Head – IPx5 to 60PSI
  • + Expand All
  • - Close All
  • PORTABLE

    • Lightweight, can go anywhere - weighs only 16 lbs. and is 16" tall.

  • VERSATILE
    • Wi-Fi version compatibility - Wi-Fi stream/record (App for Apple or Android)
    • Non Wi-Fi version compatibility - All Hathorn® M18, H12 and H12+ controllers
  • RUGGED
    • Push Rod – with premium 1/4” rod with HDPE jacket

    • Butt-welded steel frame construction

  • Wi-Fi Option
    • Compatibility – Wi-Fi stream/record (App for Apple or Android
    • Power – 18V Milwaukee™ or equivalent battery (sold separately) or included AC/DC adapter
    • Camera Head - 1"straight view camera heads auto-iris technology
    • Non-Dimmable Lighting – 8 super bright cool running LEDs for long camera life ~8,000 LUX at 6”
    • Push Rod – with premium 1/4” rod with HDPE jacket
    • Sonde - 512 Hz High-power sonde
    • Operating Temperature – -30C to 60C (-22F to 140F)
    • Ingress Protection of Reel & Drains Camera Head – IPx5 to 60PSI
  • Non Wi-Fi Option
    • Compatibility – All Hathorn M18, H12 and H12+ controllers
    • Power – Powered using Hathorn control module
    • Camera Head - 1"straight view camera heads with auto-iris technology
    • Dimmable Lighting – 8 super bright cool running LEDs for long camera life ~8,000 LUX at 6”
    • Push Rod – with premium 1/4” rod with HDPE jacket
    • Sonde - 512 Hz High-power sonde
    • Operating Temperature – -30C to 60C (-22F to 140F)
    • Ingress Protection of Reel & Drains Camera Head – IPx5 to 60PSI
  • EASY TO USE
    • Inspect pipes from 1.5” to 3” with ease
    • Camera Heads - 1" straight view camera head with auto-iris technology
  • Wi-Fi & Standard Specifications

    Micron Wi-Fi

    Standard Micron

    Display (Size & Type)

    Dependent upon Apple/Android device

    Compatible with All Hathorn control modules

    Video Recording

    MPEG4

    Screen Shot

    JPEG

    File Storage

    Mobile device, cloud, or USB

    Footage Counter

    Feet or meters, resettable

    Sonde Frequency

    512Hz

    High power 512Hz or 640Hz (available only with H12+ controller)

    Push Rod

    HDPE - 100ft. of 1/4"

    HDPE - 100ft. of 1/4"

    Recording, Storage & Power

    Please refer to H12+ specifications

    Start Up Time

    ~ 15 seconds

    Battery (not incl.)

    Only Milwaukee ® M18 18V or equivalent (not included)

    Battery Life

    12 hrs. using 3.0Ah (sonde off)

    AC/DC Adapter

    12V - 4.1A (included)

    Wi-Fi Frequency

    IEEE802.11b/g/n

    Weight without Battery

    15lbs. (6.8Kg) without battery

    Dimensions (L x W x H)

    16" x 12" x 10"

    Water Resistance - Camera and Rod

    IP67 to 60psi

    Water Resistance - Battery Cradle

    IP66

    Water Resistance - Reel Hub

    IP66

    Operating Temperature Storage

    14˚F to 122˚F (-10˚C to 50˚C)

    Temperature

    -4˚F to 140˚F (-20˚C to 60˚C)

  • Product Numbers & Specifications

    Catalog Number

    WiFi

    Camera Head

    Self Leveling

    Rod length

    Rod Size

    Min 90º Elbow

    Max. Pipe Well Lit

    LBS.

    Dimensions

    MC-1100

    No

    1"

    No

    100ft.

    1/4"

    1.5"

    4"

    15lbs.

    16"x12"x10"

    MC-1078

    No

    7/8"

    No

    100ft.

    1/4"

    1.5"

    4"

    15lbs.

    16"x12"x10"

    WMC-1100

    Yes

    1"

    No

    100ft.

    1/4"

    1.5"

    4"

    16lbs.

    16"x12"x10"

    WMC-1078

    Yes

    7/8"

    No

    100ft.

    1/4"

    1.5"

    4"

    16lbs.

    16"x12"x10"

    * Camera head skids are included and always recommended to protect camera heads.
