Key Features & Specs

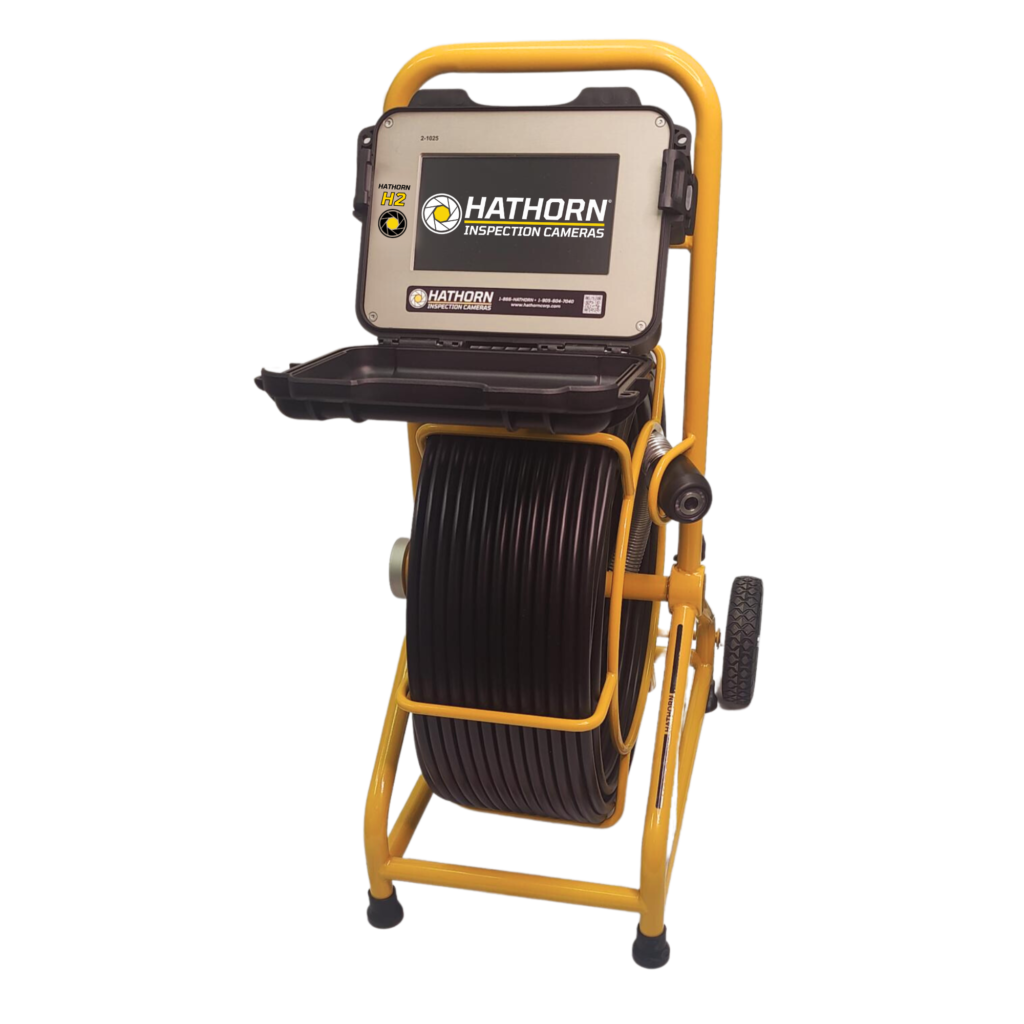

The Hathorn® H2 system comes standard with a 7” shatter resistant LCD monitor and is compatible with 18V Milwaukee™ (or equivalent) batteries for ultimate portability and over 5 hours of runtime on a single charge.

​The H2 comes equipped with 100ft or 200ft of premium cable and your choice of camera heads, all with cool running super bright LED lights.  It also comes equipped with a footage counter and 512Hz sonde and an on-screen footage counter in both feet and meters.

The H2 does not offer a recording option.

​The H2 is an entry level sewer camera trusted by plumbers and contractors all over North America to deliver rugged dependability and portability.

  • 7" shatter resistant LCD monitor
  • Straight view or self-leveling camera heads
  • 512hz sonde control
  • On-screen footage counter in both feet and meters with reset function
  • External 18v battery compatibility
  • + Expand All
  • - Close All
  • RUGGED
    • Genuinely North American made
    • Butt-welded steel frame construction
    • Military grade faceplates and connectors
    • 7” impact-resistant LCD monitor
    • Industry-leading HDPE premium cables
  • Product Numbers & Specifications

    Catalog Number

    Camera Head

    Self Leveling

    Rod Length

    Rod Size

    Min 90º Elbow

    Max. Pipe well Lit

    H2-2168-SL

    1.68"

    Yes

    200ft.

    1/2"

    3"

    12"

    H2-2143-SL

    1.43"

    Yes

    200ft.

    1/2"

    3"

    10"

    H2-2123-SL

    1.43"

    Yes

    200ft.

    0.400"

    2"

    6"

  • VERSATILE

    • Straight view or self-leveling camera heads with HD picture quality and auto-iris technology

  • EASY TO USE
    • Basic inspection camera system
    • On-screen footage counter in both feet and meters with reset function
    • Includes 512Hz sonde control
  • PORTABLE
    • Weighs only 45 lbs/20 kgs
    • External 18V battery compatibility

  • Push Rod: HPDE push rod with coax core
  • Resolution & Brightness: 1024 x 600 pixels with 500 cd/m2
  • Footage Counter: Feet or meters with reset function
  • Weight without Battery: 45lb (20Kg)
  • Size & Type: 7" (17.8cm) impact resistant LCD
  • Battery Life: ~5-6hrs using 3.0Ah (when not recording & sonde off)
  • Battery: Only Milwaukee ® M18 18V or equivalent (not included)
  • Dimensions (L x W x H): 33" x 19" x 16" (84cm x 48cm x 41cm)
  • Operating Temperature: 14˚F to 122˚F (-10˚C to 50˚C)
  • AC/DC Adapter: 12V - 4.1A (included)
  • Sonde Frequency: High power 512Hz
  • Water Resistance: IP65 when lid closed / IP64 when lid open
  • Storage Temperature: -4˚F to 140˚F (-20˚C to 60˚C)
