Key Features & Specs

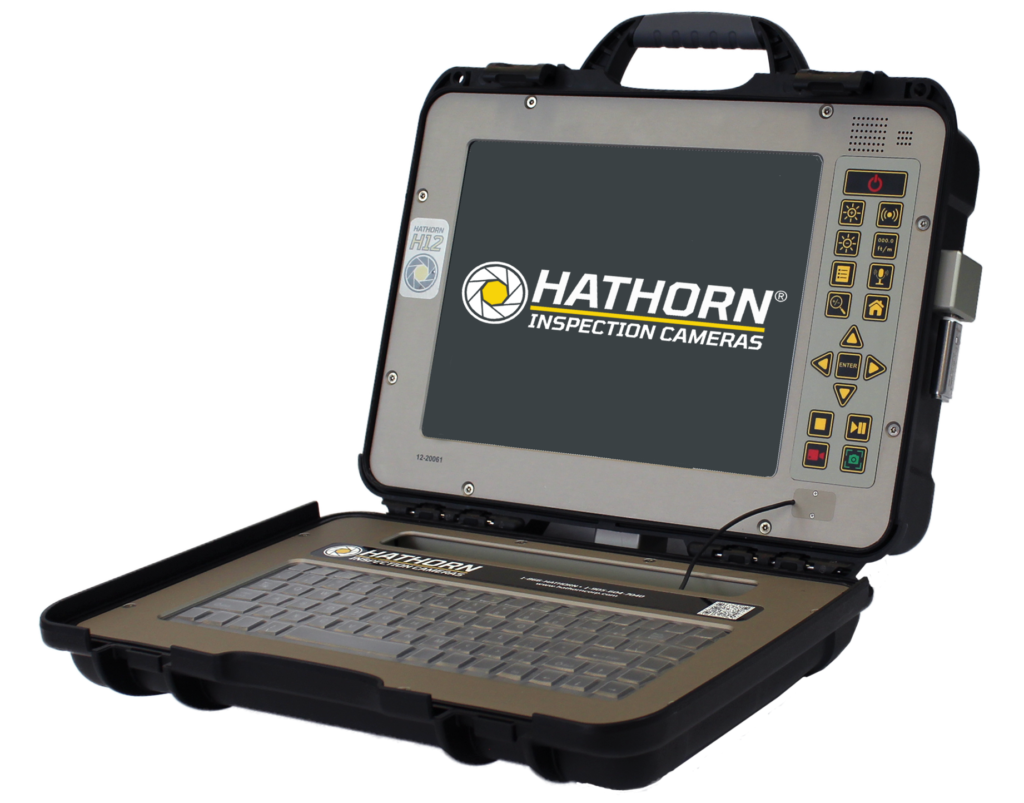

The Hathorn® H12+ is in a class of its own with the brightest daylight readable 12” LCD screen in the industry.  It has almost three times the brightness of the leading brand providing stunning picture quality, high contrast and 8X digital “pan & zoom” technology revealing details missed by other lateral push cameras.

​The new H12+ has menus in three languages  (English, French and Spanish), compatibility with all Hathorn reels from 100-500ft, unique information bar and text overlay options, two sonde frequencies (512Hz & 640Hz) and industry leading file storage.

The H12+ comes standard with a 128Gb hard drive which is upgradeable to 512Gb allowing the user to save MPEG videos and JPEG screen shots to either the HDD or to a USB stick. Wi-Fi is now available on the H12+.

​Powered by 18V Milwaukee™ (or equivalent) batteries the H12+ will run up to 4 hours on a single charge and automatically save your videos before powering down. Batteries sold separately.

  • + Expand All
  • - Close All
  • PORTABLE

    • 9.5lbs and slim design - lightest in it's class

    • 128Gb HDD with option to upgrade to 512Gb at any time

  • VERSATILE

    • Adjustable camera head lighting

    • Prominent information bar for client/company information

    • 8 pages of on-screen text writing

    • 512Hz & 640Hz sonde control

    • Powered by 18v Milwaukee™ or compatible batteries or 12V AC/DC adaptor

  • RUGGED

    • Genuinely North American made

    • Military grade faceplates and connectors

    • Full sized keyboard with silicon water resistant cover

    • 12" impact resistant screen

  • EASY TO USE

    • Industry's brightest 12" screen with 1,300 cd/m2

    • New intuitive menus in three languages - English, French and Spanish

    • One touch video recording (MPEG4) and screen shot (JPEG) to USB & HDD

    • Recording pause, video playback, fast forward and rewind.

    • On-screen footage counter with reset

    • Wi-Fi option available

  • Battery (not incl.): Only Milwaukee® M18 18V or equivalent
  • Hathorn Info Bar: 74 characters over 2 lines with time/date
  • USB Capacity: USB 2.0 up to 32Gb
  • Zoom: 1X, 2X, 4X, 8X, with digital pan feature
  • Audio: Integrated microphone and speaker
  • Camera Head LED: Dimming control 5% increments
  • Operating Temperature: 14°F to 122°F (-10°C to 50°C)
  • Footage Counter: Feet or meters with reset function
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Resolution & Brightness: XGA, 1024 X 768 pixels with 1,300 cd/m2
  • Weight without Battery: 9.5lb (4.3Kg)
  • Size & Type: 12" (30.7 cm) impact-resistant LCD
  • Hard Drive Capacity: 128Gb (standard) or 512Gb (upgrade)
  • Sonde Frequencies: High power 512Hz or 640Hz
  • Battery Life: ~4Hrs. using 3.0Ah
  • AC/DC Adapter: 12V - 4.1A (included)
  • Keyboard: Full-sized QWERTY with silicone cover
  • Reel Compatibility : All Hathorn reels (except Wi-Fi)
  • Battery Extender: Auto dimming & auto saving
  • Dimensions (L x W x H): 15" x 12" x 5.5" (38cm x 30cm x 14cm)
  • Storage Options: USB, HDD or USB & HDD
  • Water Resistance: IP65
  • Recording Options: MPEG4 video (H.264 at 30 fps) & JPEG screenshot
  • Text Overlay: 8 pages - save, recall, hide, delete
  • Menu Languages: English, Spanish, French
