AT32 All Terrain Directional Drill

  • Ditch Witch
  • All Terrain

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

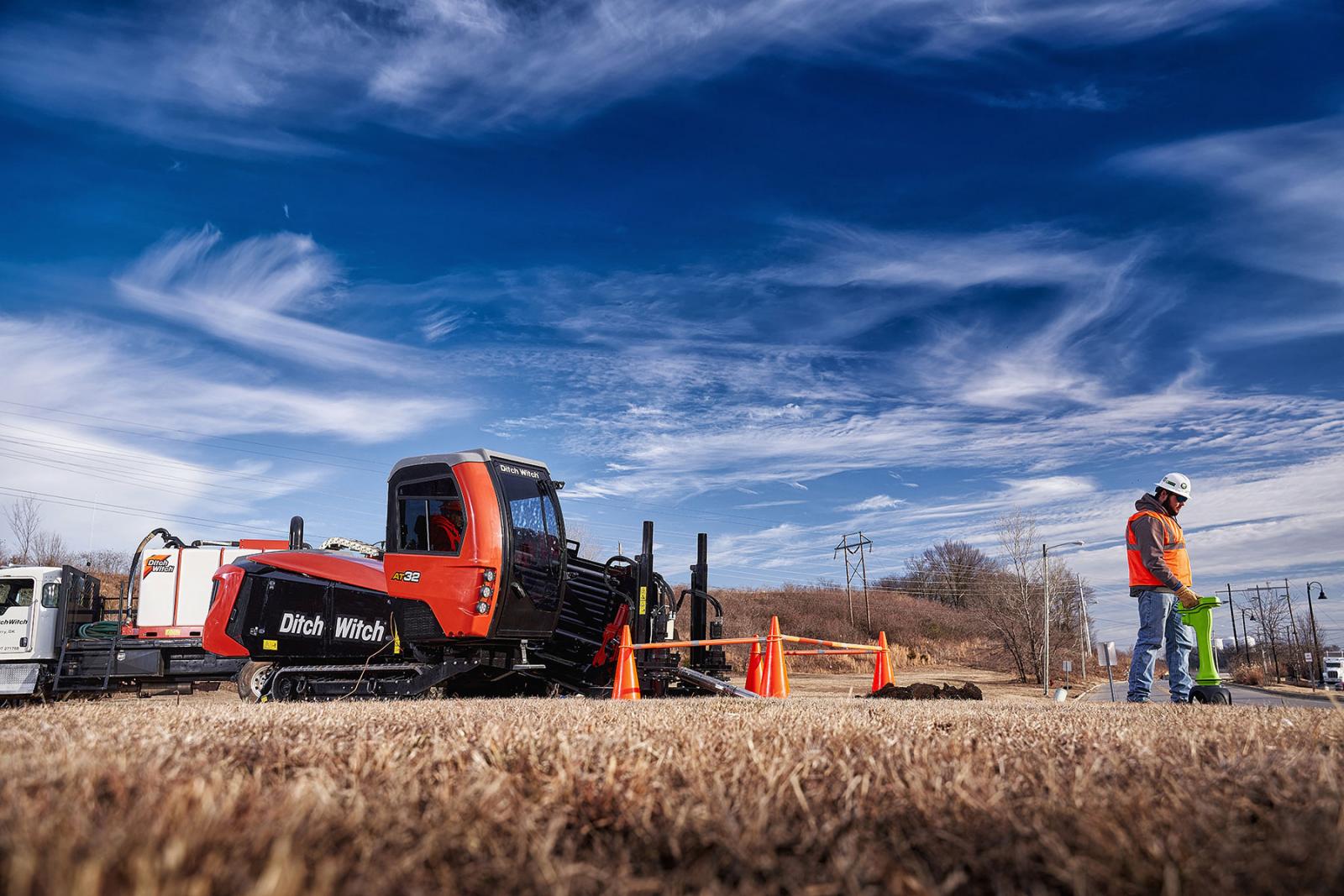

The all-new Ditch Witch AT32 packs more into every square foot. Bursting at the seams with power, the AT32 is the next generation of all-terrain drilling, packing performance and strength into a sleek package. When your jobsite demands compact power your answer is the AT32 All Terrain Directional Drill. Contact us today to schedule your demo.
  • + Expand All
  • - Close All
  • ALL TERRAIN PIPE
    Length 120 in
    Joint diameter 3.00 in
    Pipe diameter 2.50 in
    Bend radius, min 130 ft
    Weight of drill pipe, lined 108 lb
    Weight w/drill pipe & large box (45 pipe) 5,430 lb
    Weight w/drill pipe & small box (20 pipe) 2,740 lb
  • Drilling Fluid System (onboard)
    Pressure, max 1,000 psi 69 bar
    Flow, max 70 gpm 265 l/min
  • Power
    Engine Cummins® 4.5
    Fuel Diesel
    Cooling medium Liquid
    Injection Direct
    Aspiration Turbocharged & charge air cooled
    Number of cylinders 4
    Displacement 275 in3 4.5 L
    Bore 4.21 in 107 mm
    Stroke 4.88 in 124 mm
    Manufacturer's gross power rating 155 hp 115 kW
    Rated speed Tier 3/Tier 4 2,200 rpm
    Emissions compliance EPA Tier 4 EU Stage V
  • Battery (2 used)
    SAE reserve capacity rating 195 min SAE cold crank rating @ 0°F (-18°C) 950 amps
  • FORGED HDX
    Length 118.1 in
    Joint diameter 2.63 in
    Pipe diameter 2.38 in
    Bend radius, min 123 ft
    Weight of drill pipe, lined 74 lb
    Weight w/drill pipe & large box (60 pipe) 5,260 lb
    Weight w/drill pipe & small box (25 pipe) 2,549 lb
  • Dimensions
    Length 256.5 in
    Width w/cab 89.3 in
    Transport height w/cab 97 in
    Weight w/cab 19,220 lb
    Weight w/open station 18,530 lb
    Ground clearance 5.7 in
    Entry angle, max 9°-20° 9°-20°
    Entry angle, tracks on ground 9°-17° 9°-17°
  • Operation
    Spindle speed, max 220 rpm
    Spindle speed, max (AT inner spindle) 280 rpm
    Spindle torque, max 4,200 ft•lbs
    Spindle torque, max (AT inner spindle) 1,200 ft•lbs
    Carriage thrust travel speed 190 fpm
    Carriage pullback travel speed 190 fpm 58 m/min
    Pullback force 32,000 lb
    Ground travel speed Forward 2.8 mph
    Reverse 2.8 mph
  • Noise Level
    Operator sound pressure per ISO 6394 (w/ Cab) < or = 72 dBA
    Exterior sound power per ISO 6393 < or = 96 dBA
